In this article, we will show you how to add a new storage node to a deployed 3FS cluster.
Reasons and Methods For Expanding a Cluster
There are some reasons you want to add new storage services to a 3FS cluster:
- Capacity utilization is high.
- Cluster performance hits bottleneck.
- Replacing broken nodes.
There are 3 ways to increase the storage capacity or performance limit:
- Add new storage nodes to a chain table. This will increase both the capacity and performance limit, and all data accessing to existing files will be benefited.
- Add new disks to every node in a chain table. This will increase capacity. But it won’t be benefit to performance if current performance bottleneck is storage networking.
- Add a new chain table consists of new storage nodes. This will increase both the capacity and performance limit, but the new nodes only serve newly created directories.
Adding new storage nodes to a chain table fits most scenarios in production. The reasons are:
- Applications are mostly designed to created new files in pre-configured directories.
- As the applications scaling out, networking performance requirement increase simultaneously.
- When a cluster deployed, engineers usually use up all the hardwares capacity, e.g. PCI-e slots.
In the following parts, we will describe the procedure to adding new storage nodes to a chain table.
Adding New Storage Nodes to a Chain Table
In this chapter, we assume you have deployed a 3FS cluster with m3fs. All the file path used are according to m3fs’s design.
Example Deployed Cluster
Here is a two-node cluster:
- 10.0.0.1: monitor + mgmtd + meta + storage
- 10.0.0.2: storage
list-nodes
output:
$ /opt/3fs/admin_cli.sh list-nodes
Id Type Status Hostname Pid Tags LastHeartbeatTime ConfigVersion ReleaseVersion
1 MGMTD PRIMARY_MGMTD iZwz9e4meqsilq7pd7gs5iZ 1 [] N/A 1(UPTODATE) 250228-dev-1-999999-ee9a5cee
100 META HEARTBEAT_CONNECTED iZwz9e4meqsilq7pd7gs5iZ 1 [] 2025-06-03 02:56:37 1(UPTODATE) 250228-dev-1-999999-ee9a5cee
10001 STORAGE HEARTBEAT_CONNECTED iZwz9e4meqsilq7pd7gs5iZ 1 [] 2025-06-03 02:56:43 1(UPTODATE) 250228-dev-1-999999-ee9a5cee
10002 STORAGE HEARTBEAT_CONNECTED iZwz9e4meqsilq7pd7gs5jZ 1 [] 2025-06-03 02:56:43 1(UPTODATE) 250228-dev-1-999999-ee9a5cee
Now we want to add a new node 10.0.0.3 to this chain table.
Procedure Overview
- Prepare new storage nodes.
- Create new storage services.
- Generate new data placement policy.
- Migrate targets.
Prepare New Storage Nodes
You should prepare new storage nodes firstly. And here are some requirements for the new nodes:
- New nodes should have same disks setup as current nodes. Because 3FS enforces all storage nodes to use the same configuration, so the
target_paths
value is same on every storage node. Although you can disregard for performance and capacity consideration by only providing same target paths to storage service without backing them with appropriate disks, this is not recommended for production. - New nodes should have same or better networking setup. According to 3FS’s design, FUSE clients assume every storage nodes can provide same IO bandwidth.
- New nodes should have same or better CPU and memory setup.
- New nodes should use same OS.
Create New Storage Services
Because m3fs has not support adding new storage service yet, we need to do these steps manually. All these steps are executed on the new storage node 10.0.0.3 if not mentioned specially.
First, install docker:
apt -y update && apt install docker.io
Then, configure RDMA if necessary. Because we run this cluster on Aliyun’s eRDMA instances, we need to configure like this:
rmmod erdma && modprobe erdma compat_mode=1
If you are using physical RDMA cards, you don’t expect to do any configuration. If you are using RXE (soft RDMA), you may need to do like this:
root@open3fs-node2:/root# rdma link add eth0_rxe0 type rxe netdev eth0
root@open3fs-node2:/root# rdma link
link eth0_rxe0/1 state ACTIVE physical_state LINK_UP netdev eth0
Now, prepare binaries and configurations.
mkdir -p /opt/3fs/bin
scp 10.0.0.1:/opt/3fs/bin/* /opt/3fs/bin/
mkdir -p /opt/3fs/storage/{config.d,3fsdata/data0/3fs,log}
scp 10.0.0.1:/opt/3fs/storage/config.d/* /opt/3fs/storage/config.d/
Set a new node_id
and assure this is unique and consecutive:
$ cat /opt/3fs/storage/config.d/storage_main_app.toml
allow_empty_node_id = true
node_id = 10003
Using runlike command to generate docker run
command on any existing node:
$ runlike -p 3fs-storage
docker run --name=3fs-storage \
--hostname=iZwz9e4meqsilq7pd7gs5iZ \
--volume /opt/3fs/storage/log:/var/log/3fs \
--volume /opt/3fs/storage/3fsdata:/mnt/3fsdata \
--volume /opt/3fs/bin/ibdev2netdev:/usr/sbin/ibdev2netdev \
--volume /etc/libibverbs.d/erdma.driver:/etc/libibverbs.d/erdma.driver \
--volume /usr/lib/x86_64-linux-gnu/libibverbs/liberdma-rdmav34.so:/usr/lib/x86_64-linux-gnu/libibverbs/liberdma-rdmav34.so \
--volume /dev:/dev \
--volume /opt/3fs/storage/config.d:/opt/3fs/etc \
--network=host \
--privileged \
--runtime=runc \
--detach=true \
open3fs/3fs:20250410 \
/opt/3fs/bin/storage_main --launcher_cfg /opt/3fs/etc/storage_main_launcher.toml --app_cfg /opt/3fs/etc/storage_main_app.toml
Start storage service on new node 10.0.0.3 with above command. Change the hostname argument to a unique hostname in the cluster:
docker run --name=3fs-storage \
--hostname=iZwz9e4meqsilq7pd7gs5kZ \ # This is unique in 3FS cluster, check with list-nodes
--volume /opt/3fs/storage/log:/var/log/3fs \
--volume /opt/3fs/storage/3fsdata:/mnt/3fsdata \
--volume /opt/3fs/bin/ibdev2netdev:/usr/sbin/ibdev2netdev \
--volume /etc/libibverbs.d/erdma.driver:/etc/libibverbs.d/erdma.driver \
--volume /usr/lib/x86_64-linux-gnu/libibverbs/liberdma-rdmav34.so:/usr/lib/x86_64-linux-gnu/libibverbs/liberdma-rdmav34.so \
--volume /dev:/dev \
--volume /opt/3fs/storage/config.d:/opt/3fs/etc \
--network=host \
--privileged \
--runtime=runc \
--detach=true \
open3fs/3fs:20250410 \
/opt/3fs/bin/storage_main --launcher_cfg /opt/3fs/etc/storage_main_launcher.toml --app_cfg /opt/3fs/etc/storage_main_app.toml
Check the new storage node with list-nodes
command:
$ /opt/3fs/admin_cli.sh list-nodes
Id Type Status Hostname Pid Tags LastHeartbeatTime ConfigVersion ReleaseVersion
1 MGMTD PRIMARY_MGMTD iZwz9e4meqsilq7pd7gs5iZ 1 [] N/A 1(UPTODATE) 250228-dev-1-999999-ee9a5cee
100 META HEARTBEAT_CONNECTED iZwz9e4meqsilq7pd7gs5iZ 1 [] 2025-06-03 03:46:48 1(UPTODATE) 250228-dev-1-999999-ee9a5cee
10001 STORAGE HEARTBEAT_CONNECTED iZwz9e4meqsilq7pd7gs5iZ 1 [] 2025-06-03 03:46:55 1(UPTODATE) 250228-dev-1-999999-ee9a5cee
10002 STORAGE HEARTBEAT_CONNECTED iZwz9e4meqsilq7pd7gs5jZ 1 [] 2025-06-03 03:46:54 1(UPTODATE) 250228-dev-1-999999-ee9a5cee
10003 STORAGE HEARTBEAT_CONNECTED iZwz9e4meqsilq7pd7gs5kZ 1 [] 2025-06-03 03:46:57 1(UPTODATE) 250228-dev-1-999999-ee9a5cee
Generate New Data Placement Policy
After the new storage service online, you need to generate new data placement policy for the chain table. You can read these two articles about data placement policy:
We need to execute data_placement.py
script in 3fs-mgmtd
container (node 10.0.0.1) with same --replication_factor
and --min_targets_per_disk
arguments (m3fs use --replication_factor 2
and --min_targets_per_disk 32
as default values), and providing previous model with -m
argument (the output/DataPlacementModel-xxx file, you can regenerate this using same argument when you deploy the cluster). Notice to the --num_nodes
argument.
docker exec 3fs-mgmtd python3 /opt/3fs/data_placement/src/model/data_placement.py \
-ql -relax -type CR --num_nodes 3 \
--replication_factor 2 --min_targets_per_disk 32 \
-m output/DataPlacementModel-v_2-b_32-r_32-k_2-λ_32-lb_1-ub_0/incidence_matrix.pickle
This will generated a new data placement policy model:
2025-06-03 03:50:05.467 | SUCCESS | __main__:run:148 - saved solution to: output/RebalanceTrafficModel-v_3-b_48-r_32-k_2-λ_16-lb_1-ub_0

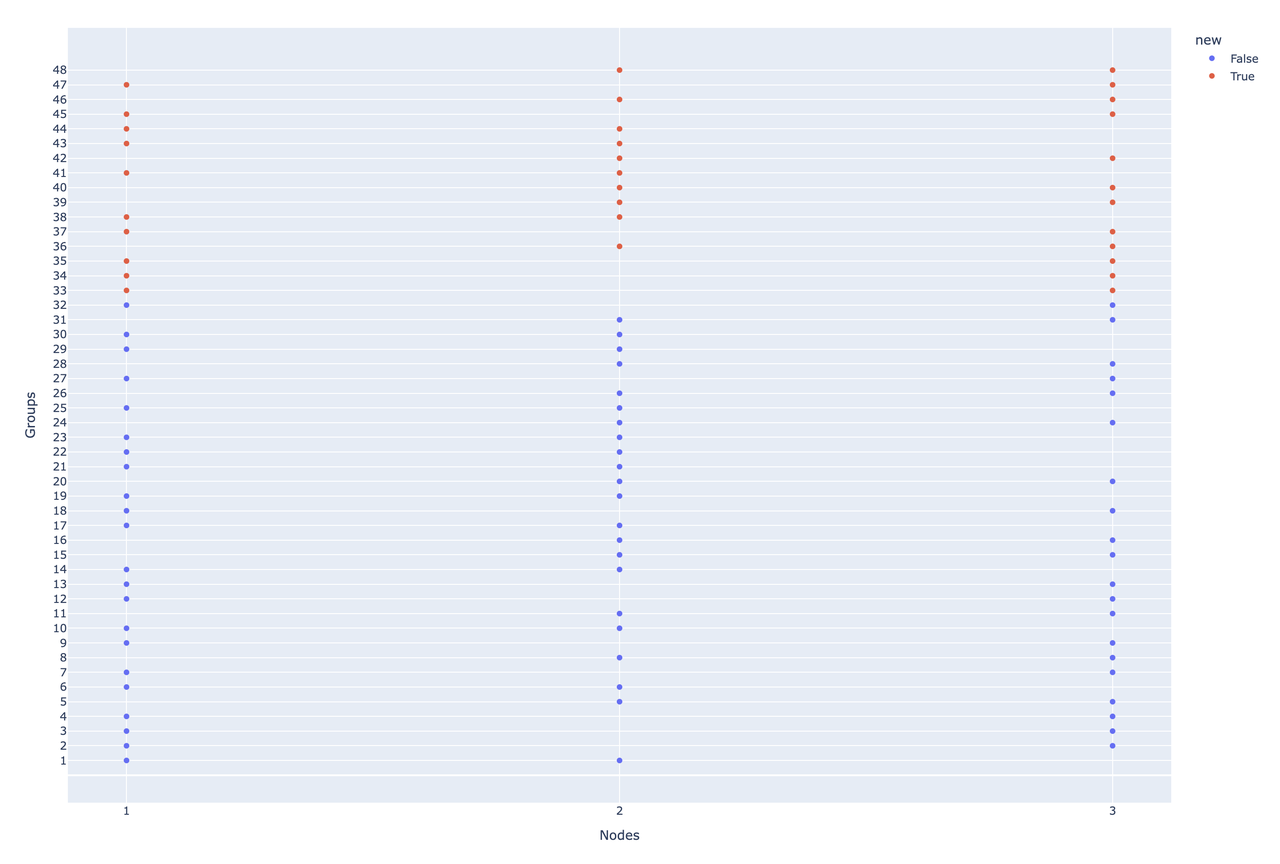

You can check the data placement policy visually through the HTML file in the dir:
Now we can generate new chain table configuration with new model. Make sure target_id_prefix
and chain_id_prefix
are same with current setting.
docker exec 3fs-mgmtd python3 /opt/3fs/data_placement/src/setup/gen_chain_table.py \
--chain_table_type CR --node_id_begin 10001 --node_id_end 10003 \
--num_disks_per_node 1 --num_targets_per_disk 32 \
--target_id_prefix 1 --chain_id_prefix 9 \
--incidence_matrix_path output/RebalanceTrafficModel-v_3-b_48-r_32-k_2-λ_16-lb_1-ub_0/incidence_matrix.pickle
After generation, check the result as follows. Now the number of chains is increased to 48 (previous 32), each storage node still serves 16 chains, and each chain still has replicator set to 2.
$ docker exec 3fs-mgmtd cat /output/create_target_cmd.txt
create-target --node-id 10001 --disk-index 0 --target-id 101000100101 --chain-id 900100001 --use-new-chunk-engine
create-target --node-id 10002 --disk-index 0 --target-id 101000200101 --chain-id 900100001 --use-new-chunk-engine
create-target --node-id 10001 --disk-index 0 --target-id 101000100102 --chain-id 900100002 --use-new-chunk-engine
...
create-target --node-id 10003 --disk-index 0 --target-id 101000300131 --chain-id 900100047 --use-new-chunk-engine
create-target --node-id 10002 --disk-index 0 --target-id 101000200132 --chain-id 900100048 --use-new-chunk-engine
create-target --node-id 10003 --disk-index 0 --target-id 101000300132 --chain-id 900100048 --use-new-chunk-engine
$ docker exec 3fs-mgmtd cat /output/generated_chain_table.csv
ChainId
900100001
900100002
900100003
...
900100046
900100047
900100048
$ docker exec 3fs-mgmtd cat /output/generated_chains.csv
ChainId,TargetId,TargetId
900100001,101000100101,101000200101
900100002,101000100102,101000300101
900100003,101000100103,101000300102
...
900100046,101000200131,101000300130
900100047,101000100132,101000300131
900100048,101000200132,101000300132
$ docker exec 3fs-mgmtd cat /output/remove_target_cmd.txt
offline-target --node-id 10001 --target-id 101000100101
remove-target --node-id 10001 --target-id 101000100101
offline-target --node-id 10002 --target-id 101000200101
...
remove-target --node-id 10002 --target-id 101000200132
offline-target --node-id 10003 --target-id 101000300132
remove-target --node-id 10003 --target-id 101000300132
Migrate Targets
Now we come to the most tricky part. We can not use the generated create_target_cmd.txt and generated_chains.csv directly. Because mgmtd is not allow to update existing chains:
$ /opt/3fs/admin_cli.sh "upload-chains /output/generated_chains.csv"
Encounter error: 5007(Mgmtd::InvalidChainTable)
Target mismatch of ChainId(900100002). old: [TargetId(101000100102),TargetId(101000200102)]. new: [TargetId(101000100102),TargetId(101000300101)]
To apply the new placement policy, we should manually migrate each chain to new targets, and make sure the data rebalance is finished correctly. The basic idea is:
- Processing chains in generated_chains.csv from top to bottom.
- For each chain, say chain A, checks the new targets assigned to the chain:
- If the target does not belongs another chain in previous placement policy, we can added it to chain A.
- If the target belongs to another chain B in previous placement policy, we should firstly remove it from chain B, recreate it, and then added it to chain A. But if the target is the last target of the chain B, we should process chain B firstly.
Let’s take a chain as example.
$ docker exec -it 3fs-mgmtd cat /output/generated_chains.csv | head -n 17
ChainId,TargetId,TargetId
900100001,101000100101,101000200101
900100002,101000100102,101000300101
900100003,101000100103,101000300102
900100004,101000100104,101000300103
900100005,101000200102,101000300104
900100006,101000100105,101000200103
900100007,101000100106,101000300105
900100008,101000200104,101000300106
900100009,101000100107,101000300107
900100010,101000100108,101000200105
900100011,101000200106,101000300108
900100012,101000100109,101000300109
900100013,101000100110,101000300110
900100014,101000100111,101000200107
900100015,101000200108,101000300111
900100016,101000200109,101000300112
Above is the new generated chains. Assuming we have processed all chains above 900100005
and it is now we need to process chain 900100005
, it’s targets changed from 101000100105,101000200105
to 101000200102,101000300104
. The new target 101000200102
belongs to another chain right now, while target 101000300104
is not used.
Following commands do the migration:
# Remove target 101000200105, so chain 900100005 downgrade to 1 replica.
/opt/3fs/admin_cli.sh offline-target --target-id 101000200105
/opt/3fs/admin_cli.sh update-chain --mode remove 900100005 101000200105
# Target 101000200102 belongs to chain 900100019 right now.
# Need to move target 101000200102 from chain 900100019 to 900100005.
# Firstly, remove target 101000200102 from chain 900100019
/opt/3fs/admin_cli.sh offline-target --target-id 101000200102
/opt/3fs/admin_cli.sh update-chain --mode remove 900100019 101000200102
/opt/3fs/admin_cli.sh remove-target --node-id 10002 --target-id 101000200102
# Secondly, recreate the target and add it to chain 900100005
/opt/3fs/admin_cli.sh create-target --node-id 10002 --disk-index 0 --target-id 101000200102 --chain-id 900100005 --use-new-chunk-engine
/opt/3fs/admin_cli.sh update-chain --mode add 900100005 101000200102
# Wait status of 101000200102 changed from SYNCING-ONLINE to SERVING-UPTODATE
# Now chain 900100005 consists of targets `101000100105,101000200102`
# Using offline or rotate to reorder targets in chain. Turn 101000100105 into TAIL and 101000200102 into HEAD.
/opt/3fs/admin_cli.sh offline-target --target-id 101000100105
# Delete TAIL 101000100105
/opt/3fs/admin_cli.sh update-chain --mode remove 900100005 101000100105
# Create new target 101000300104 to join chain 900100005
/opt/3fs/admin_cli.sh create-target --node-id 10003 --disk-index 0 --target-id 101000300104 --chain-id 900100005 --use-new-chunk-engine
/opt/3fs/admin_cli.sh update-chain --mode add 900100005 101000300104
# Now chain 900100005 consists of targets `101000200102,101000300104`
NOTICE: Check target status after every command execution, make sure target status are expectable.
/opt/3fs/admin_cli.sh list-chains
This is a error-prone procedure, so we wrote a script to generate these commands: gen-migrate-cmds.py. After generating new data placement policy, run this script on mgmtd node:
python3 gen-migrate-cmds.py
After all chains being processed, we can apply the commands and chains output by gen_chain_table.py. These commands are idempotent for targets of the cluster.
docker exec -it 3fs-mgmtd cat /output/create_target_cmd.txt | /opt/3fs/admin_cli.sh
/opt/3fs/admin_cli.sh "upload-chains /output/generated_chains.csv"
/opt/3fs/admin_cli.sh "upload-chain-table --desc stage 1 /output/generated_chain_table.csv"
IO Behavior When Migrating Targets
- IO will hang up for few seconds when you adding target to a chain, removing target from a chain or offline a target.
- Bandwidth will decrease before data rebalance finished.
Conclusion
Although there are some ways to expand a 3FS cluster, adding new storage nodes to an existing chain table is the most useful method. But adding new storage nodes to a chain table is really complicated; make sure to always check target status after every operation.
The method described in this article has a significant drawback: it requires removing targets from chains first, which temporarily reduces data reliability. However, this approach has a key advantage: it does not require existing nodes to have significant spare capacity, making it more practical for production environments.
In next article, we will describe a more secure method to add new storage nodes to a chain table.
